Product description

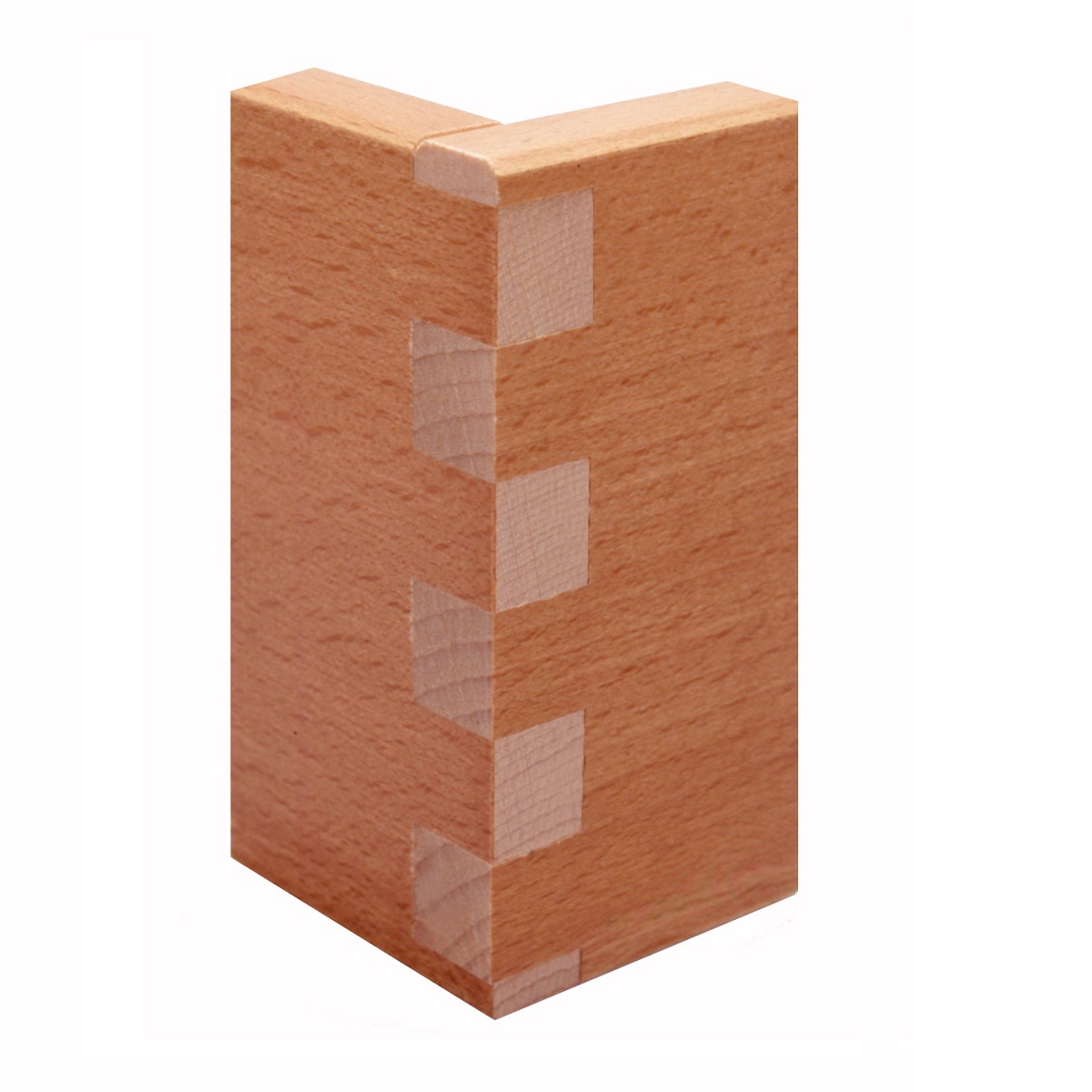

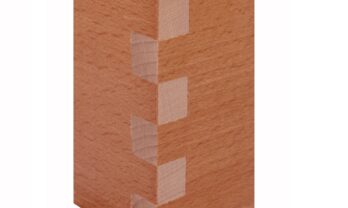

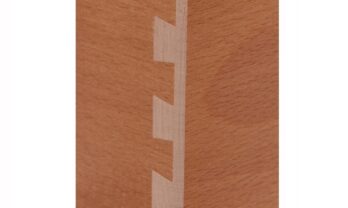

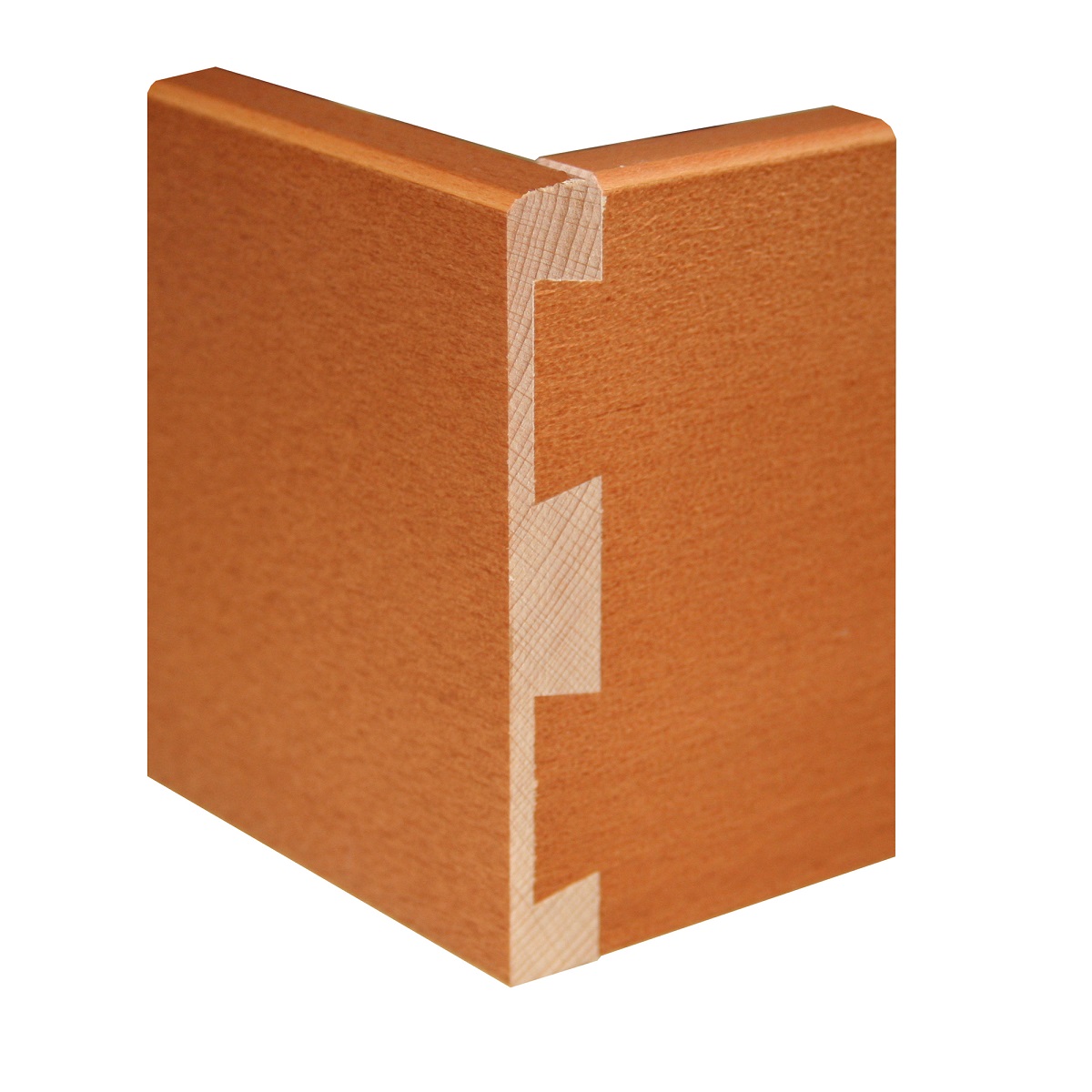

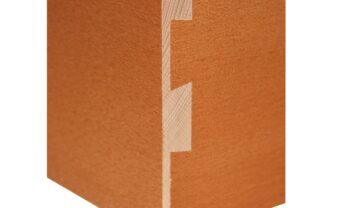

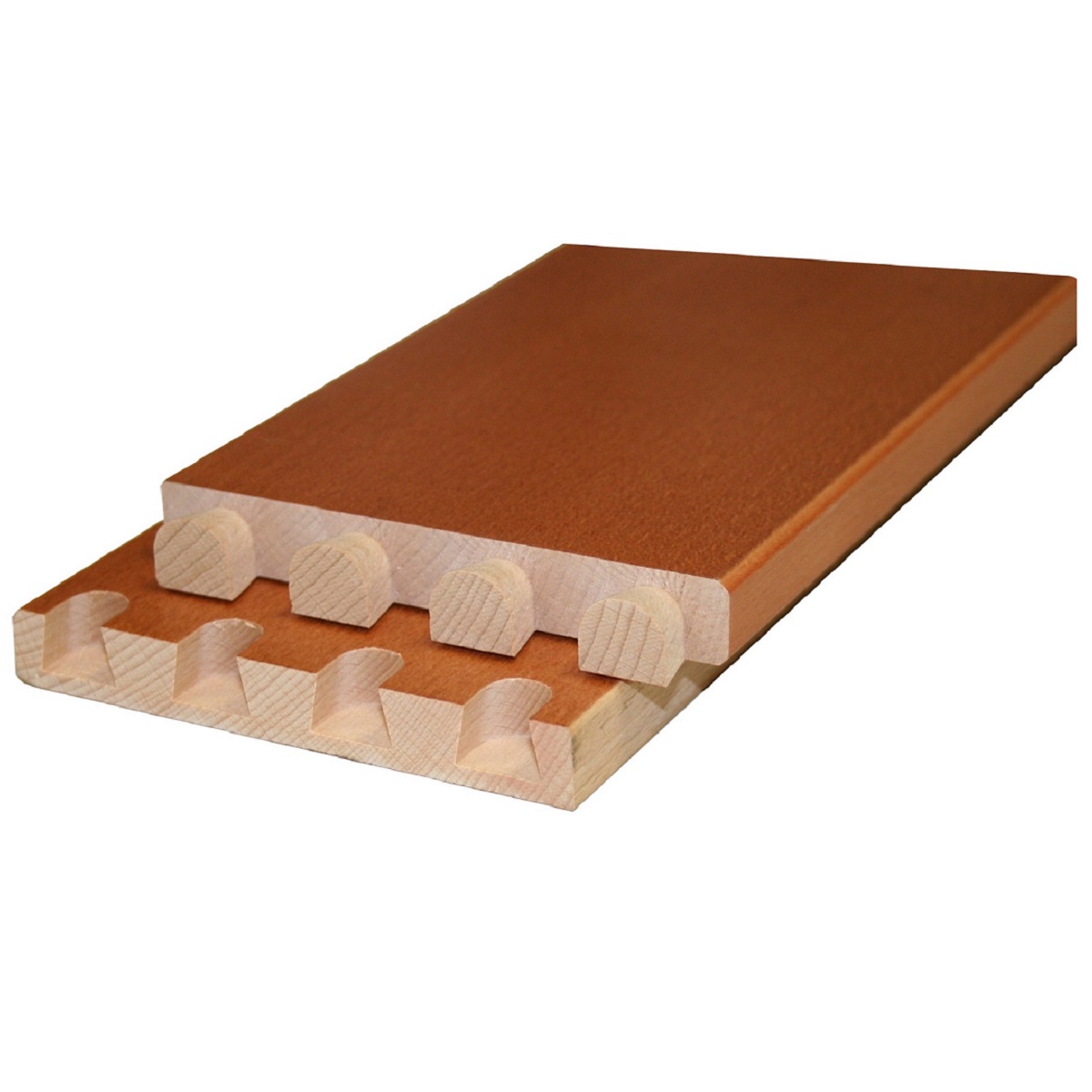

The manual milling machine Omec 650-M is utilised to indent dovetails for drawers and various furniture elements. The machine is equipped with a mill spindle which allows cutting of indents of adjustable height. The machine can cut four types of indents with different pitches. The locking and release of the pieces takes place manually by means of pneumatic valves.  The controls are realised with a magnetothermic switch that is directly installed on the terminal board of the motor, and lever hand wheels installed at the sides of the machine.

Technical data
  • On board machine installed power
    0,75 Kw
  • Working pressure
    0,7 MPascal
  • Spindles
    1 N°
  • Spindle revolutions
    16.500 n/1'
  • Center to center of indents
    25-40-50-80 mm
  • Machine weight
    125 kg
  • Packed machine weight
    161 kg
  • Over-all dimensions (l x w x h)
    80x72x132 cm
  • Packing dimensions
    88x140x74 cm

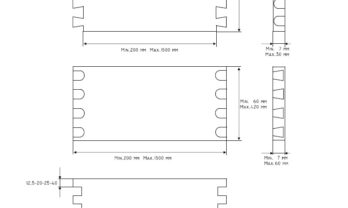

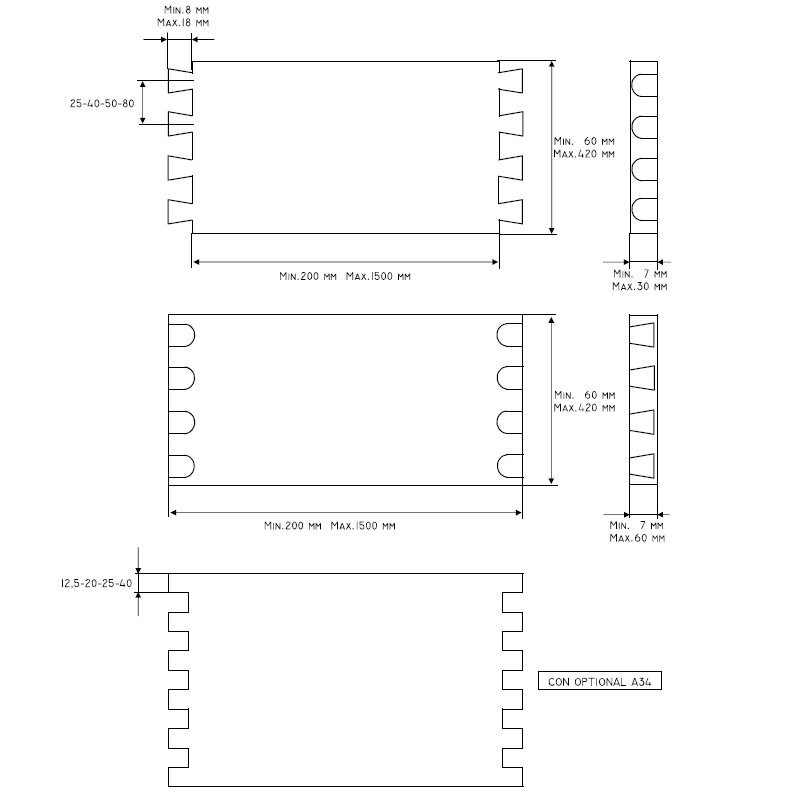

Dimensions and Processing
Dimensioni minime e massime dei mezzi
Minimum and maximum dimensions of vehicles
  • Length
    200mm - 1500mm
  • Width
    60mm - 420mm
  • Indent Height
    8mm - 18mm
  • Front Thickness
    7mm - 60mm
  • Side Thickness
    7mm - 30mm
