Product desctiption

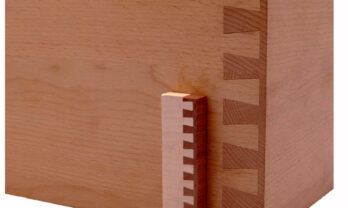

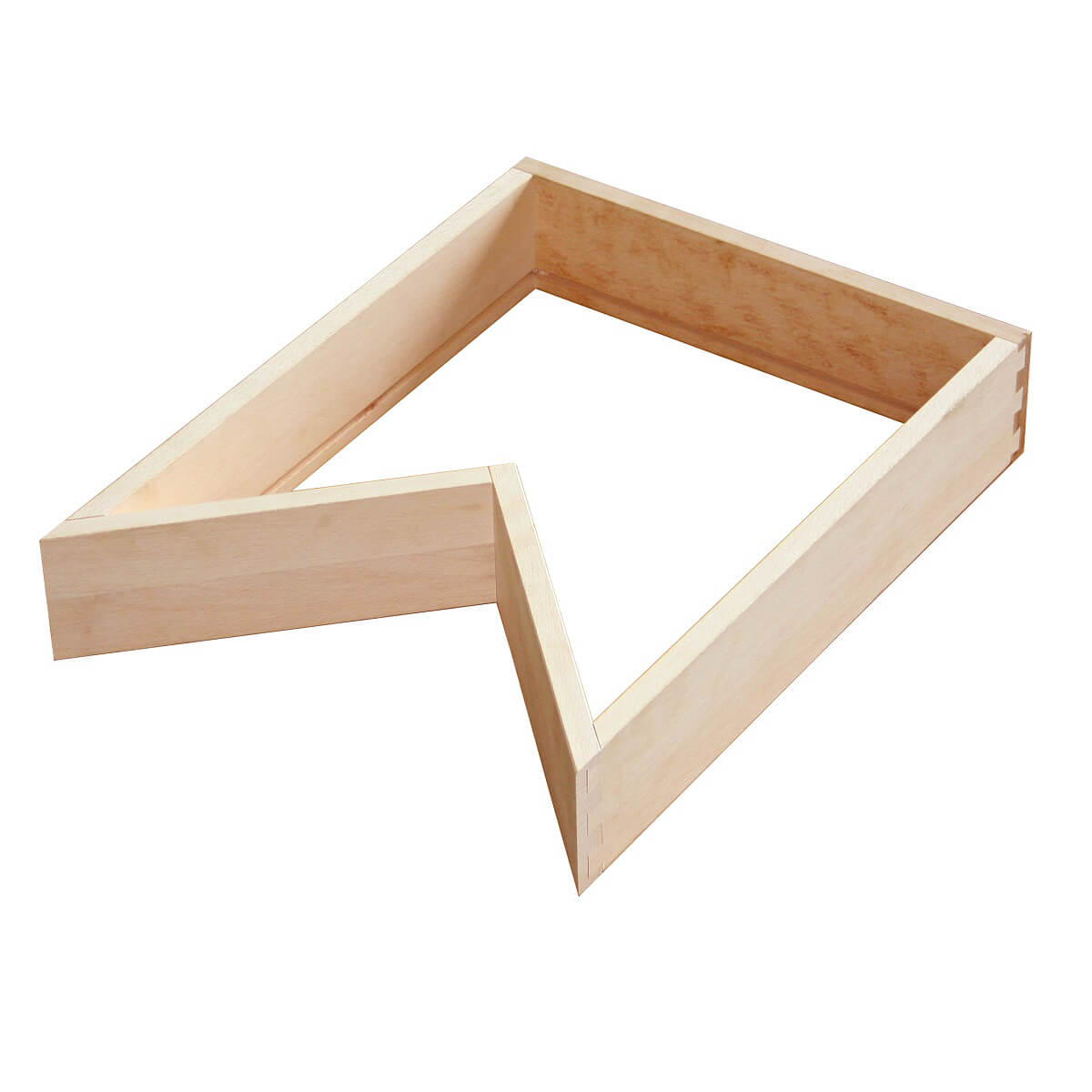

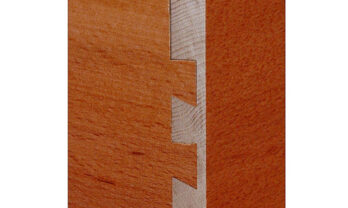

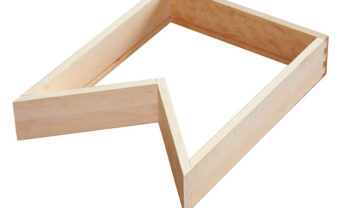

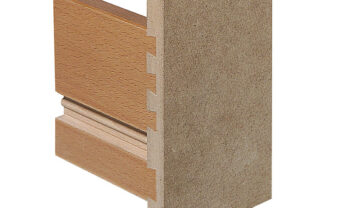

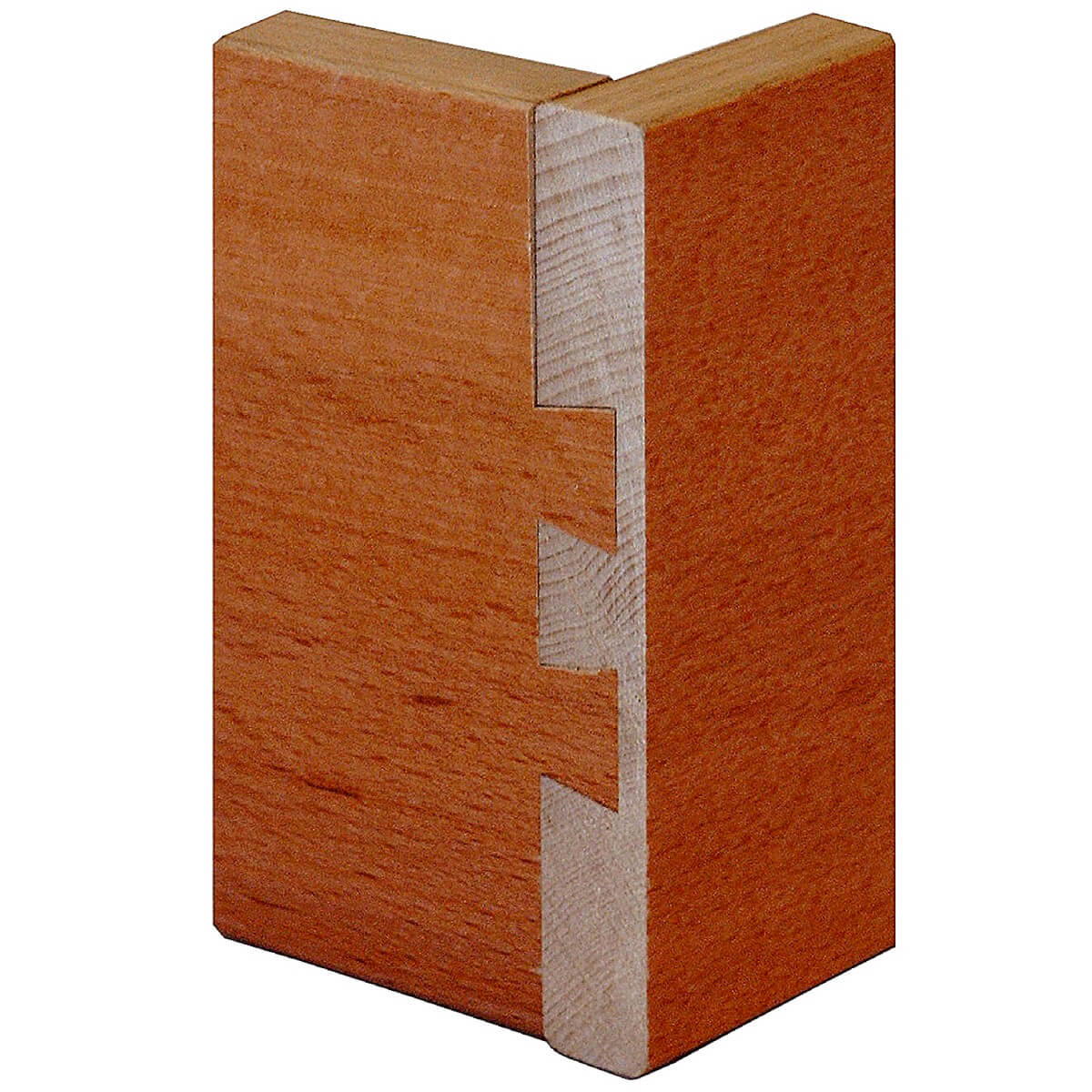

The two-axis automatic mill cutter with numerical control, OMEC F11ts,  is designed to indent dovetails, French and parallel indents for drawers and several furniture elements. The machine is extremely flexible and enables to perform ten different types of indents. Model F11ts is equipped with a spindle and a mill cutter that allow the production of indents of different heights.  The machine is designed to cut single male or female workpieces or both simultaneously. Pieces can be clamped and released in manual mode by means of pneumatic valves. Controls are issued from a numerically controlled push button panel. Model F11ts is controlled by a numerical control system that is programmed to guarantee the utmost machining flexibility and to change the machining limits within the following variables:



• Type of indents

• Pitch of indents and the offset

• Number of indents

• Depth of indents

• Dimensions of the pieces

• Cutting speed and tool feeding

All the adjustments can be easily carried out following the software instructions of the machine displayed on the monitor.

Technical data
  • On board machine installed power
    4,2 Kw
  • Working pressure
    0,7 MPascal
  • Mill cutter
    1 N°
  • Mill cutter revolutions
    18.000 n/1'
  • Centre to centre joints
    variabile a fisso mm
  • Drawers production
    120 n/h
  • Machine weight
    530 kg
  • Packed machine weight
    687 kg
  • Overall dimensions (lenght x width x height)
    85x170x120 cm
  • Packaging dimensions
    96x190x143 cm

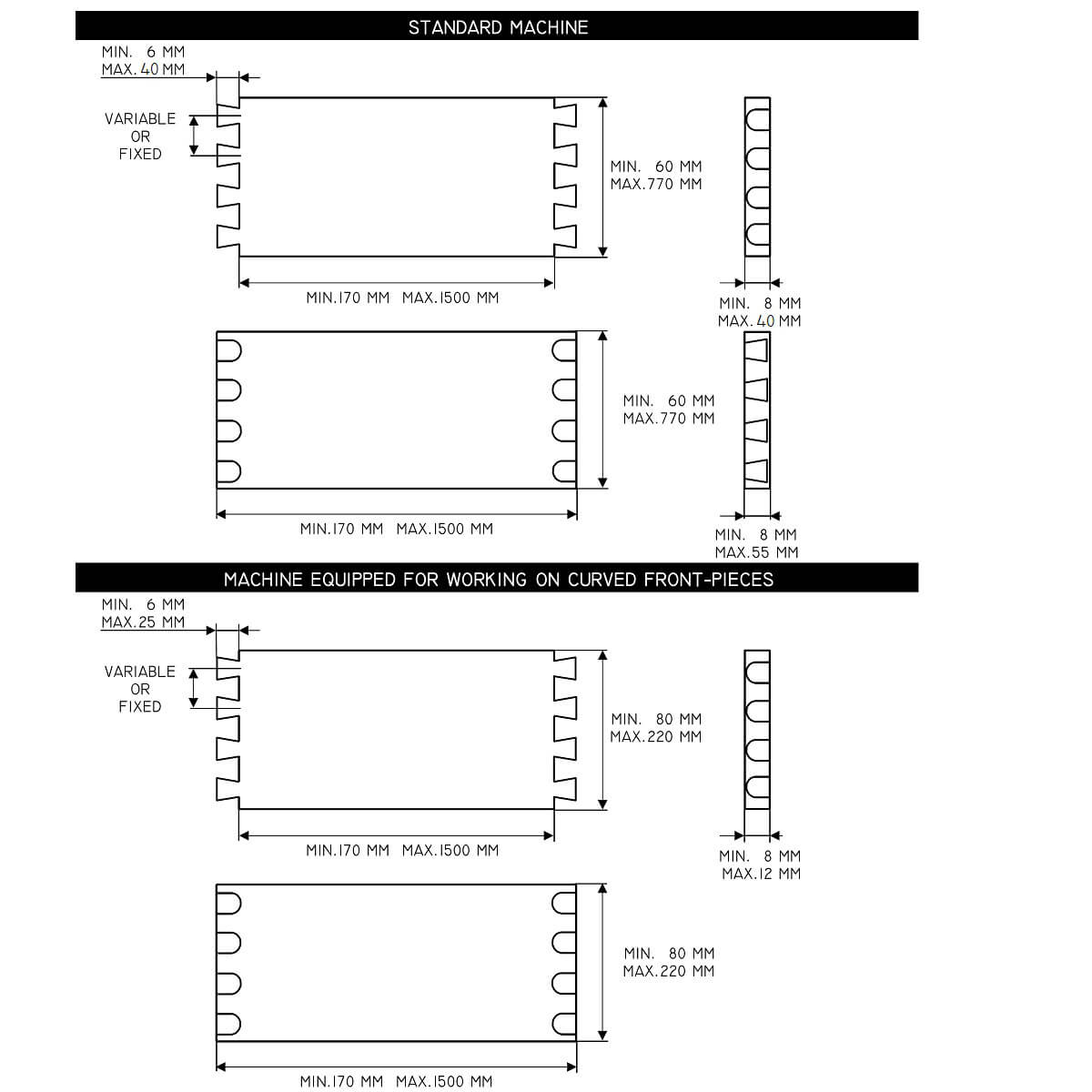

Dimensions and Processing
Dimensioni minime e massime dei mezzi
Minimum and maximum dimensions of vehicles
  • Length
    170mm - 1500mm
  • Width
    60mm - 770mm
  • Indents Height
    6mm - 40mm
  • Case Thickness
    8mm - 55mm
  • Crosspiece Thickness
    8mm - 40mm
