750 CN-C-C

Product description

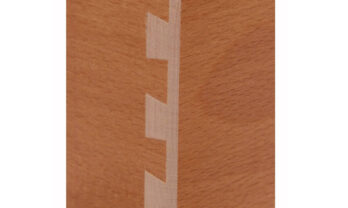

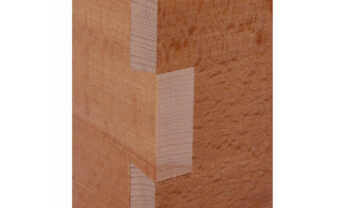

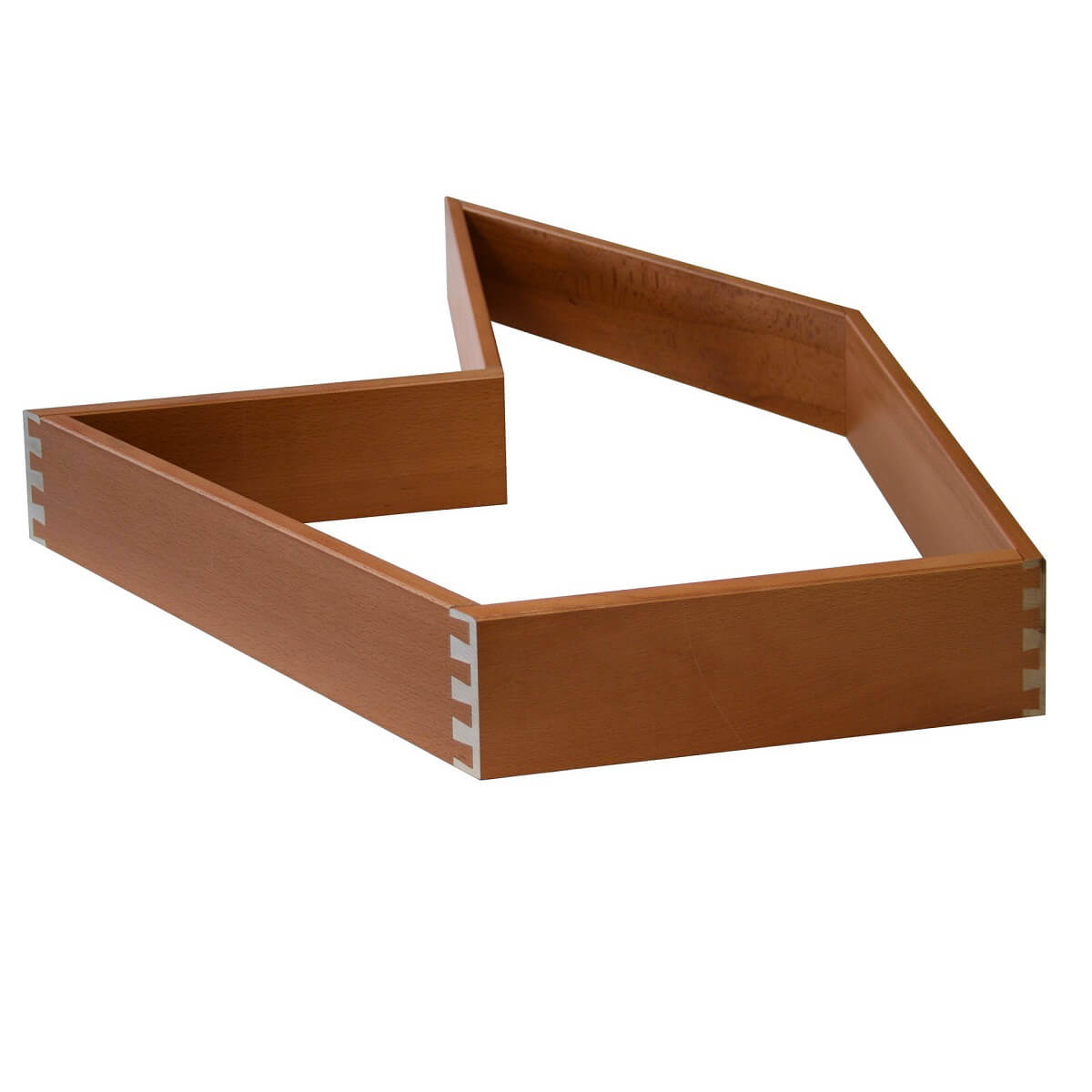

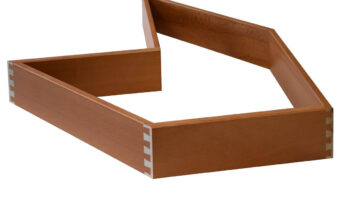

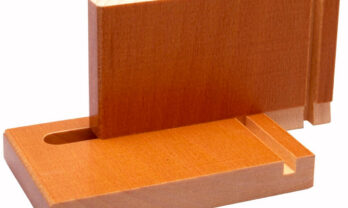

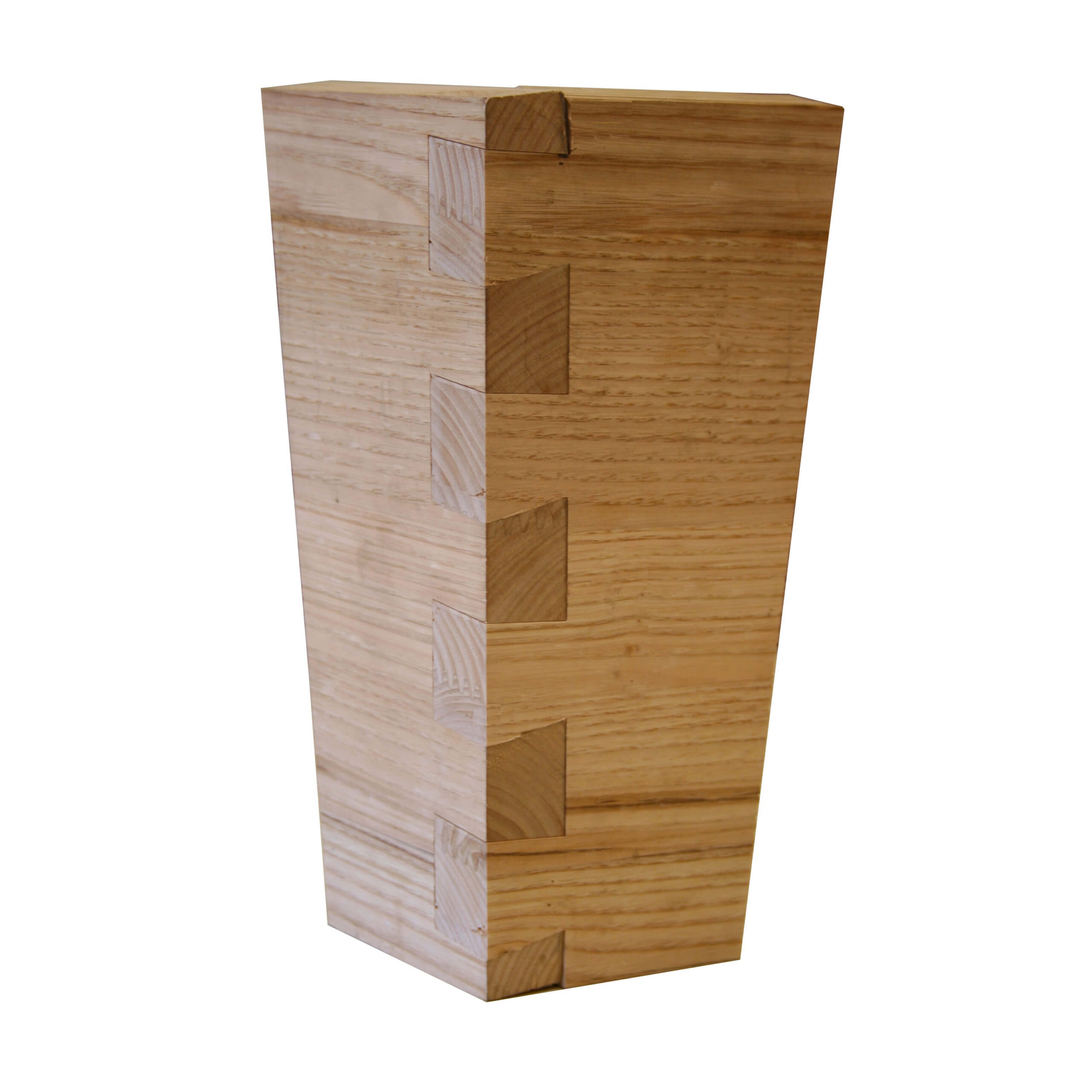

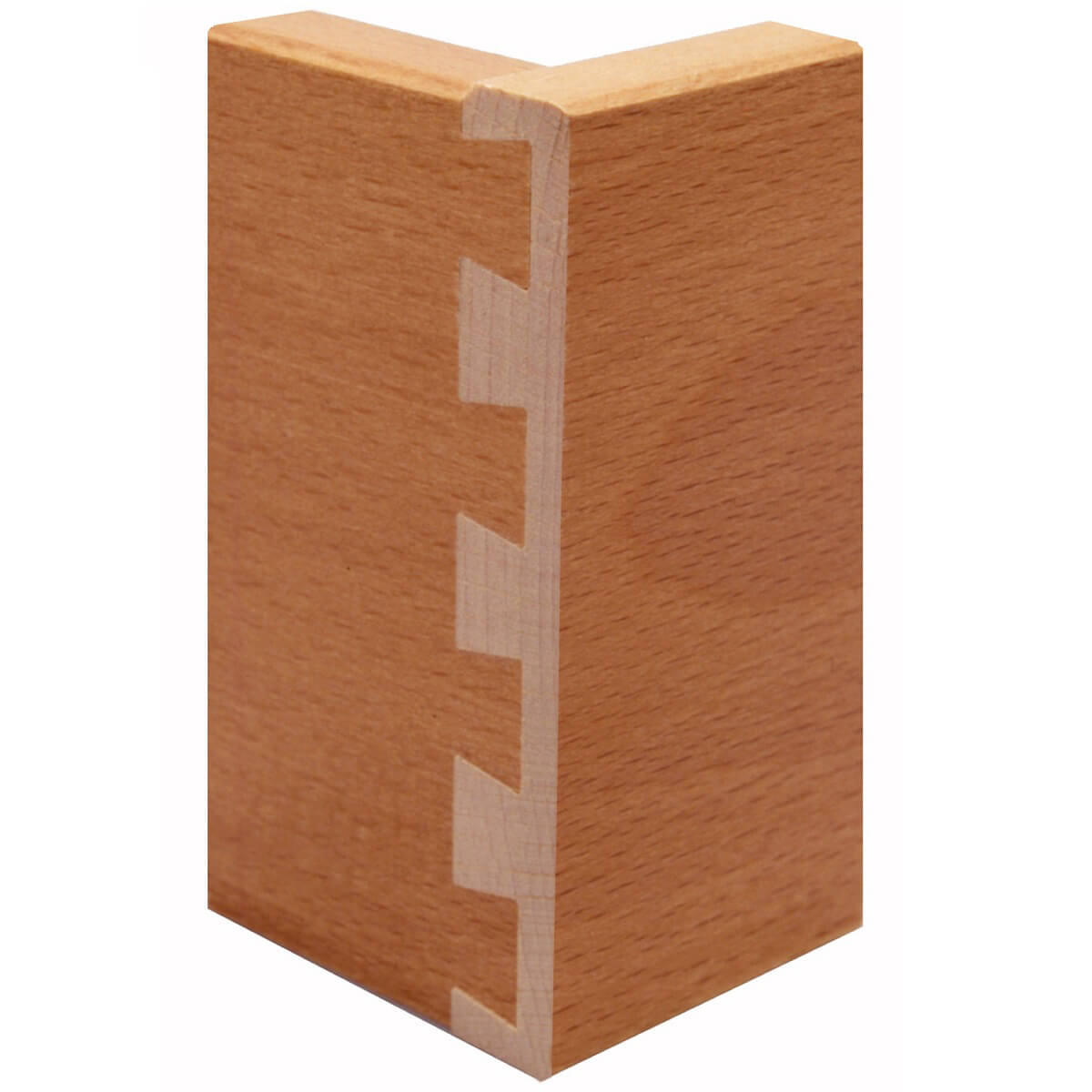

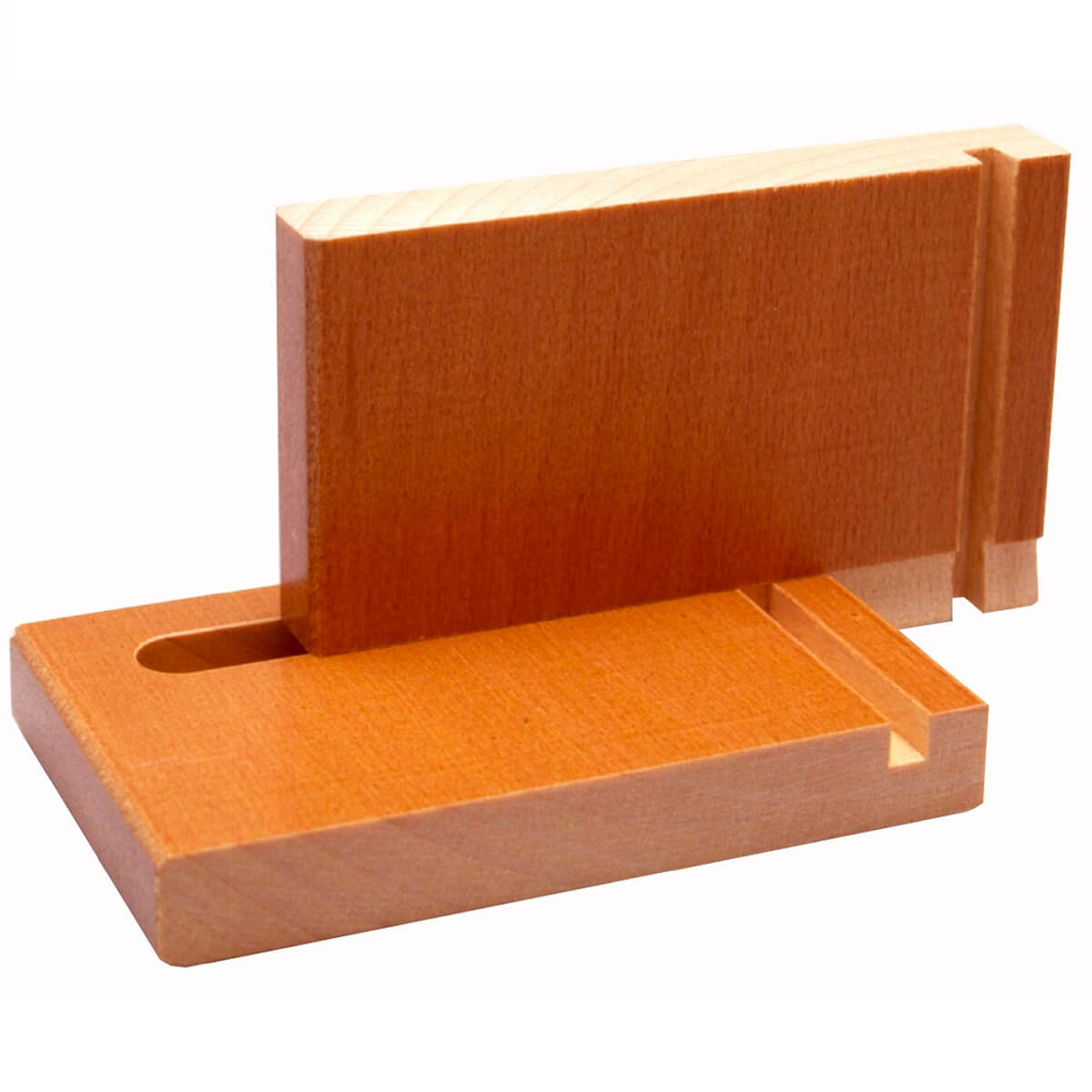

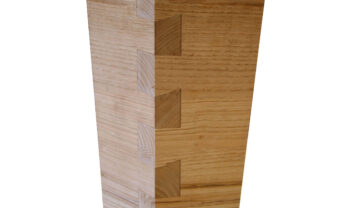

The two-axis automatic mill cutter with numerical control,OMEC 750 CN-C–C,  is designed to indent dovetails and parallel indents for drawers and several furniture elements. Model 750 CN-C–C  is equipped with a spindle and a mill cutter that allow the production of indents of different heights.  The machine is designed to cut single male or female workpieces, or both simultaneously. Pieces can be clamped and released in manual mode by means of pneumatic valves. Controls are issued from a numerically controlled push button panel. Model 750 CN-C–C  is controlled by a numerical control system that is programmed to guarantee the utmost machining flexibility and to change the machining limits within the following variables:

• pitch of indents

• number of indents

• depth of indents

• dimensions of the pieces

• cutting speed and tool feeding

• compensation of the tool radius variation

All the adjustments can be easily carried out following the software instructions of the machine displayed on the monitor.

Technical data
  • On board machine installed power
    2,7 Kw
  • Working pressure
    0,7 MPascal
  • Electrical spindle
    1 N°
  • Electrical spindle revolutions
    18.000 n/1'
  • Center tot center of indents
    variabile o fisso mm
  • Drawers production
    60 n/h
  • Machine weight
    312 kg
  • Packed machine weight
    400 kg
  • Over-all dimensions (l x w x h)
    112x80x120 cm
  • Packing dimensions
    135x97x145 cm
Dimensions and Processing
Dimensioni minime e massime dei mezzi
Minimum and maximum dimensions of vehicles
  • Length
    200mm - 1500mm
  • Width
    60mm - 530mm
  • Indent Height
    6mm - 20mm
  • Front Thickness
    8mm - 50mm
  • Side Thickness
    8mm - 40mm
